60 Liter Split Solar Powered Hot Water Heaters Installed On Wall Solar Collector Water Heating System

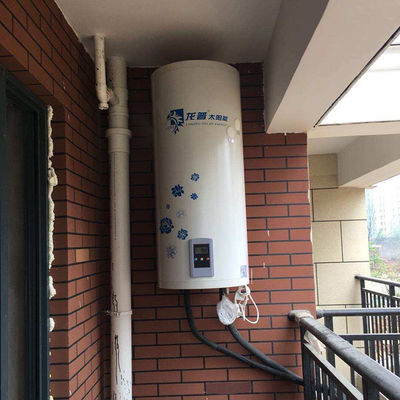

Balcony wall mounted Solar water heater

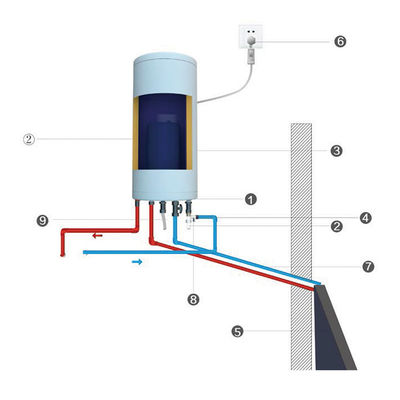

The natural circulation solar water heating system is mainly composed of heat exchange water tank, heat collector, connecting pipe and circulating medium. When installing, the bottom of the water tank shall be higher than the top of the collector. In normal operation, the medium in the collector is exposed to sunlight, and the temperature of the medium increases, but the density decreases. Therefore, the heated medium rises gradually in the collector, and enters the heat exchanger of the water storage tank from the upper circulating pipe of the collector, and then transfers the heat to the water in the water tank through the heat exchanger in the water tank. The medium circulates between the collector and the heat exchanger of the water tank, and continuously transfers heat energy to heat the water in the water tank.

When the solar energy is insufficient, the electric auxiliary heating is started to supplement the required hot water. The balcony wall mounted solar water heater not only ensures the reliability of hot water supply, but also maximizes the use of solar energy to generate hot water, so as to reduce the operating cost of the system.

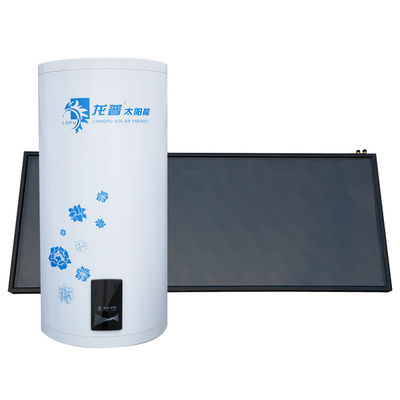

Quick Detail:

• Capacity:60L/80L/100L/120L
• Type of Water tank:Enamel solar water tank with jacket heat exchanger
• Solar collector:Flat plate solar collector
• Size of solar collector:2000*1000*80mm,2000*800*80mm,2400*800*80mm
• Circulation:Natural
• Medium:Antifreeze fluid

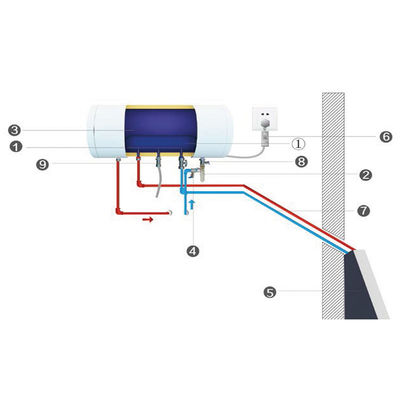

• Installation:Vertical/Horizontal on wall
• Electric heating Power:1.5/2.0KW

System features:

• Separated structure, easy installation of outdoor collector, perfect combination with the building;

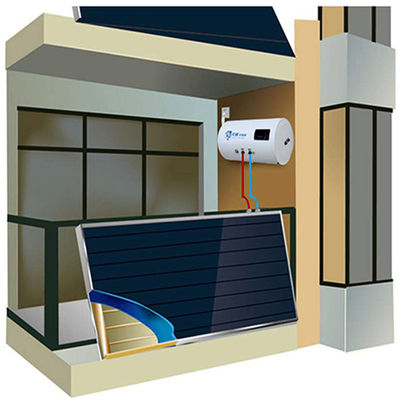

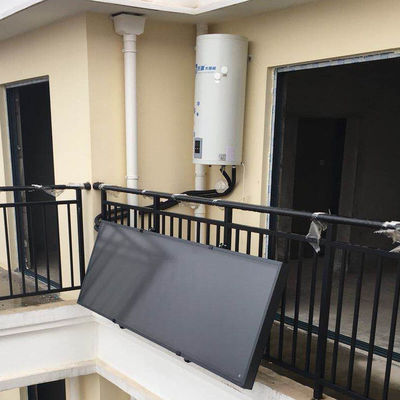

• The collector can be installed on the roof of the building or on the south facade of the balcony building, which enriches the building function and gives consideration to the beauty of the building.
• The heat storage tank can be placed in the appropriate place according to the user's needs, such as toilet, equipment room, balcony, etc.
• The heat collection circulation pipeline can be arranged along the tube well or buried in a suitable structure, without affecting the indoor appearance;
• The closed collector circulation system controls the medium circulation through the temperature difference to complete the heat transfer and heat exchange.

Specification:

OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.

We can customize product as your requests.Please don't hesitate to contact us if you have any demands.

Established in 2008,Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven. With Shandong Haovat New Energy Co., Ltd., as a wholly-owned subsidiary, it covers an total area of 65,000 square meters with a total capacity of 600,000 sets per year.

Our main products includes heat storage enamel solar water tanks ,air source heat pump household enamel water tank, air source heating buffer water tank,balcony solar water heater,split solar water heater, integrated solar water heater,tankless solar water heater,flat plate solar collector,solar vacuum tube and solar cooker.
