Product Details:
|
| Features: | Anti-freezing,Free Maintance,Safe And Convenient | Installation: | Rooftop |
|---|---|---|---|
| Product Name: | Compact Flat Plate Solar Water Heater | Medium: | Antifreez Fluid |
| Size Of Solar Collector: | 1800x1230x80mm | System: | Pressurized |
| Dimension: | Φ500*1300mm | Collector Type: | Flat Plate Solar Collector |
| Highlight: | Rooftop Fpc Solar Water Heater,Solar Water Heater With Flat Plate Collector,Pressurized Fpc Solar Water Heater |
||

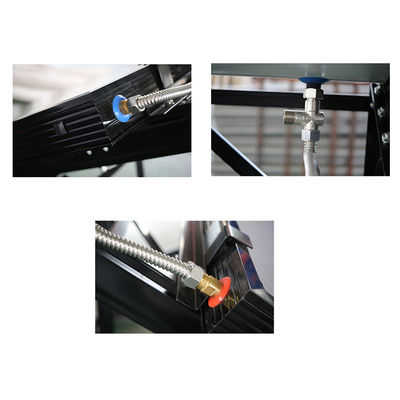

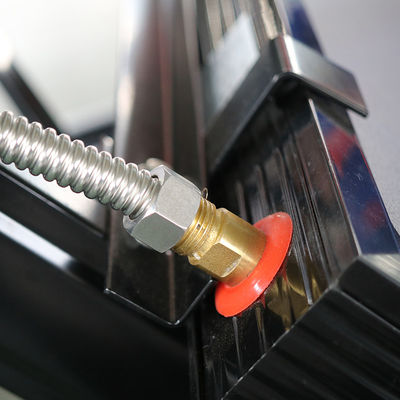

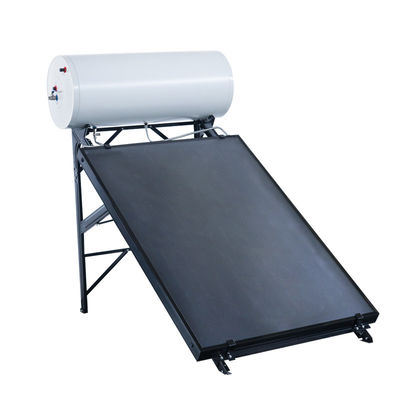

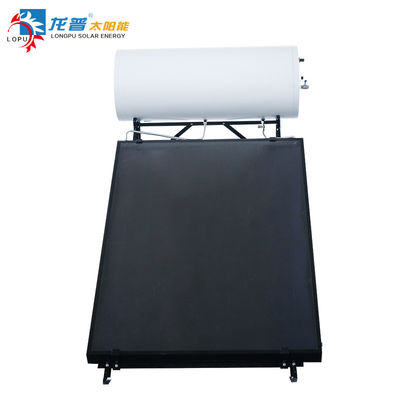

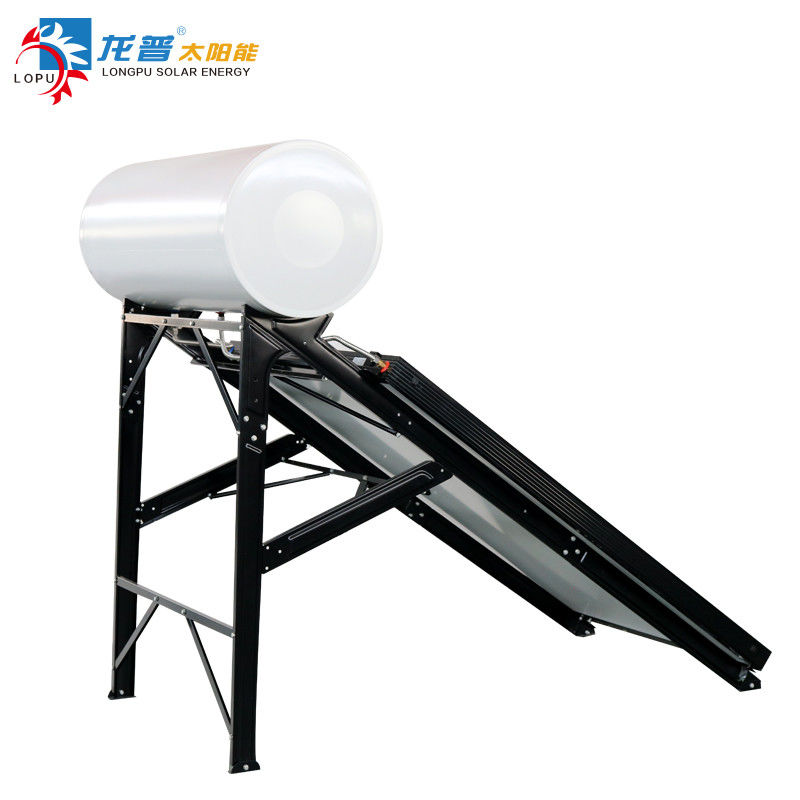

Our 135L integrated flat plate pressurized solar water heater produced is consisted of one enameling solar water tank and one flat plate solar thermal collector.The water storage tank is connected with the circulation port of the flat solar collector through the circulation pipeline of the heat exchange medium.It's indirect/closed loop (active) solar water heater. The pressurized operation system guarantees strong water outlet.The blue film on the solar collector makes high efficiency heat collection. And the glass lined enameling solar water tank ensures healthy water quality.The antifreeze medium circulation ensures the performance of antifreeze and scale prevention of water heater.
| Product Name | Compact flat plate solar water heater | |
| Water tank | Capatity of water tank(L) | 135 |
| Overall dimention of water tank(mm)) | φ500*1300mm | |
| Type of water tank | Horizontal Jacketed porcelain enamel glass lined water tank | |
| Gross weight/Net weight of water tank | 55/50Kg | |
| Plate material/thickness of inner tank(mm) | Material: enameling steel plate Grade:BTC210R Thickness:2.0mm Process:The inner surface is first sandblasted and then enameled. |
|
| Thickness of enamel layer | 0.15-0.5mm | |
| Rated pressure | inner tank :0.7Mpa | |
| Material of Thermal insulation material | Polyurethane Thermal | |
| Thickness of Thermal insulation material(mm) | 42mm | |
| The mouth size of inlet and outlet pipe and medium pipe | G1/2" external thread | |
| Material/thickness of out shell(mm) | Material:PCM colored steel plate, Thickness: 0.4mm Color:Gray white color, Printing : can be customized |
|
| Solar collector | Size of solar collector(mm) | 1800x1230x80mm |
| Working pressure of solar collector | 0.2Mpa | |
| Type of solar collector | Flat plat solar collector | |
| Material of glass | Low iron ultra white cloth toughened glass, Thickness 3.2mm,Transmittance≥95% | |
| Material of frame | Aluminum alloy 6063 T5 | |
| Material of back plate | 0.4mm glavanized steel plate/color steel plate | |
| Header tube of collector | red copper TP2 ,Φ 20*0.6mm | |
| Endothermic coating | 3003 T=0.4mm,Heat absorption ratio ≥0.97,Emissivity<0.1 | |
| Riser tube of collector | red copper TP2 ,Φ 8*0.5mm | |
| heat preservation | Polyester cotton,density≥30kg/M3 | |
| Size of pipe mouth | G1/2" external thread | |
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
Sea worthy:Cartons,Wooden cases
FAQ:Q1: What is capacity of this Compact Solar Water Heater?
A1: 135L
Q2: Is it pressurized or unpressurized sysytem?
A2: Pressurized.
Q3: What kind of water tank does this Compact Solar Water Heater use?
A3: Jacketed Enamel Solar Water Tank.
Q4:What type solar collector does this Compact Solar Water Heater use?
A4: Flat plate solar collector.
Q5: What's the system of this Compact Solar Water Heater?
A5: Indirect/closed loop (active) system.
Q6: What medium does this Compact Solar Water Heater use?
A6: Antifreez fluid
