Product Details:
|
| Application: | Hot Water Supply,cooling And Heating | Noise: | ≦52DB（A） |
|---|---|---|---|
| Material: | Stainless Steel | Rated Input Power/current: | 720W/3.4A |
| Heat Exchange Method: | Internal 316L Stainless Steel Coil Tube | Capacity: | 100L,150L,200L |
| Maximum Heating Power: | 1500W | Energy Source: | Air Energy |
| Highlight: | 200l air source heat pump water heater,ss air source heat pump water heater,200l air source water heater |
||
Quick details:
Capacity:100L,150L,200L
Material of inner tank:enamel water tank
Energy Source :Air energy
Heat exchange method:Internal 316L stainless steel coil tube
Rated input power/current:720W/3.4A
Maximum heating power:1500W
Rated Heating capacity:2750W
Noise:≦52DB(A)
Application:hot water supply,cooling and heating
STRUCTURE
TECHNICAL PARAMETERS
| Air energy heat pump integrated machine | ||||||
| Capacity |
Overall dimension of water tank(mm) |
Gross weitht/ Net weight(kg) |
Structure of heat exchanger | Install |
Rated input power |
Rated heating Capacity |
| 100L | φ500*1505mm | 71/66Kg | Inner coil | Vertical | 720W/3.4A | 2750W |
| 150L | φ500*1850mm | 80/74Kg | ||||
| 200L | φ500*2195mm | 91/85Kg | ||||
| 100L | φ500*1505mm | 72/66Kg | External coil | Vertical | 720W/3.4A | 2750W |
| 150L | φ500*1850mm | 80/74Kg | ||||
| 200L | φ500*2195mm | 91/85Kg | External coil | Horizontal | 215W/1.03A | 750W |
| 60L | Φ470*1000mm | 61/57Kg | ||||
| 80L | φ500*1050mm | 70/65Kg | ||||
| Electric-heating power | 1500W | |||||
| Noise | ≦52DB(A) | |||||
| Plate material and thickness of inner tank(mm) | Material: enameling steel plate Thickness:2.0mm Process:The inner surface is first sandblasted and then enameled. |
|||||
| Thickness of enamel layer | 0.15-0.5mm | |||||
| Material and thickness of outer shell(mm) | Outer shell Material:PCM colored steel plate, Out shell thickness: 0.4mm Out shell color:Gray white color, Printing on out shell: can be customized |
|||||
| Size of inlet and outlet pipes and medium pipes | The inlet and outlet are G1/2 "internal threads; The inlet and outlet of refrigerant are respectively G5/8 "and G7/16" external threads; The drain outlet is G3/4 "internal thread. |
|||||
| Heat exchange method, material and area of heat exchanger | Internal 316L stainless steel coil tube,Length=18M (Φ9.52mm) | |||||
| heating pipe | Heating pipe is optional,Power 2000W | |||||
| Thickness of Polyurethane Thermal Insulation Layer(mm) | 42mm | |||||
| Rated working pressure of inside tank of water tank | 0.70MPa for inner tank | |||||
APPLICATION

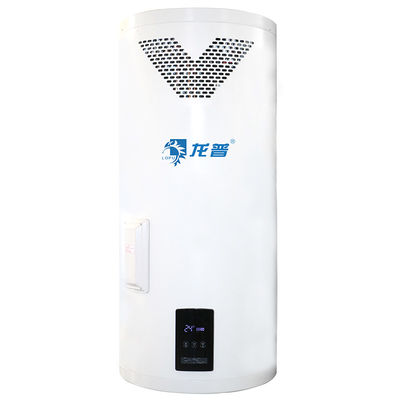

Longpu air energy integrated heat pump system is an ideal choice for residential and commercial applications. It is equipped with an enamel water tank with capacity up to 200L, and a maximum heating power of 1500W. The internal 316L stainless steel coil tube helps to ensure efficient heat exchange. Longpu air energy heat pump system is the perfect solution to your energy-saving needs.
CUSTOMIZATION
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
PACKING AND SHIPPING
FAQ:
Q1: Are you a manufacturer or trading company??
A: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven
Q2: What's the capacity of Air Source Heat Pump Integrated Machine ?
A: 100L,150L,200L.
Q3: What is the material of your Air Source Heat Pump Integrated Machine?
A: The Material of inner tank is enamel steel plate,the material of outer shell is PCM colored steel plate.
Q4:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
Q5: What are the advantages of the Air energy heat pump integrated machine?
