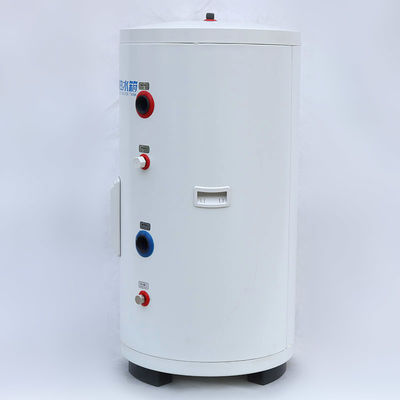

Product Details:
|
| Model: | 470series,500series | Material Of Outer Shell: | PCM Colored Steel Plate |
|---|---|---|---|
| Material Of Inner Tank: | Enamel Steel Plate | Installation: | Vertical |
| Capacity: | 60L,100L,150L,200L | Application: | Air Heating System,air-conditioning System |
| Diameter Of Buffer Water Tank: | 470mm,500mm | Source Energy: | Air Energy |
| Highlight: | air source buffer tank 100l,150l ashp buffer tank,heating ashp buffer tank |
||
A buffer tank is designed to help decrease the cycling of a heat source, or to store thermal energy generated for use later when required. Buffer tanks hold or store a volume of heated water, which is generally “heating water” that runs through heating system (hydronic systems),such as underfloor heating or radiators. In essence they are thermal storage tanks, as they store the thermal heat generated in the water, this thermal heat or energy is used at a later point.
A buffer tank is typically thought of as a device that stores thermal mass so that a heating or cooling supply doesn’t cycle too much as lower load requirements cycle on and off for the heat pump system. By reducing heat pump cycling frequency, you also can reduce running costs.
Main functions:
1. Storage function 2. Buffering effect 3. Active exhaust function 4. Protection for circulating pump and pipeline
5. Cleaning function 6.Efficient defrosting 7. Stability
Features:
1.Better reliability 2. Longer service life 3. More environmental protection and safety
What does exactly the buffer tank of air source heat pump do?
In the absence of a buffer tank, the air source heat pump unit would start and stop frequently. Due to the limited amount of water in the circulating pipeline, the circulating water can easily reach the set temperature in a short time, and the unit stops working randomly. Then the circulating water will cool down rapidly, so the water temperature will reach the start-up condition of the heat pump in a short time, leading to the machine start-up again. Such frequent start-up will greatly increase the load of the unit, and reduce its service life; because the power consumption of the heat pump reaches a peak at start-up, it will also cause a waste of electricity. With the buffer tank, the temperature of circulating water changes more smoothly and slowly, and the number of start-up and shutdown naturally decreases a lot, effectively prolonging the service life of heat pump.
Buffer tank allows the heat pump system to clean itself more thoroughly and prevent the system from getting clogged.
Efficient defrosting - with a buffer tank, the defrosting time is reduced. When the air source heat pump works in cold weather, the heat pump will frost.
A buffer tank can ensure the smooth flow of water in the heat pump system so that it can complete automatic exhaust, and avoid error alarm.
| Technical Paremeters For Air Energy Buffer Water Tank | ||||
|
Capacity (L) |
60L (470series) |
100L (470series) |
150L (500series) |
200L (500series) |
| Dimension of water tank | Φ470*725mm | Φ500*925mm | Φ500*1305mm | Φ500*1645mm |
| Gross /Net weight of water tank | 23/21Kg | 31/28Kg | 43/38Kg | 55/50Kg |
| Plate material and thickness of inner tank(mm) | Enameling steel plate ,T≥1.8mm, Process:The inner surface is first sandblasted and then enameled. |
|||
| Thickness of enamel layer | 0.15-0.5mm | |||
| Material and thickness of outer shell(mm) | PCM colored steel plate,T= 0.4mm,Gray white color,Printing can be customized | |||
| Size of inlet and outlet pipes and medium pipes |
The thread size of the medium port is G1 1/4”, and the medium pipe mouth is 180 degrees, with one inlet and one outlet; The thread size of medium port of the 150L buffer tank is G2” |
|||
| Thickness of Polyurethane Thermal Insulation Layer(mm) | 50mm for 470 series,42.5mm for 500 series | |||
| Rated working pressure of inside tank of water tank | 0.50MPa for inner tank | |||
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
Established in 2008,Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) is a high-tech enterprise specializing in the research,Q1: Are you a manufacturer or trading company??
A: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven
A: 60L,100L,150L,200L.
A: The Material of inner tank is enamel steel plate,the material of outer shell is PCM colored steel plate.
Q4:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
Q5: What are the benefits of using an Air Source Buffer Tank?
A: Using an Air Source Buffer Tank can help reduce energy consumption, improve system performance, and reduce noise.
