Product Details:
|
| Insulation: | 42mm | Material Of Outer Shell: | PCM Colored Steel Plate |
|---|---|---|---|
| Capacity: | 100L,150L,200L | Material Of Inner Tank: | Enamel Steel Plate |
| Diameter Of Water Tank: | 500mm | Pressure: | 0.7Mpa |
| Application: | Air Heating And Hot Water Supply | ||
| Highlight: | 100l furnace water tank,enamel furnace water tank |
||

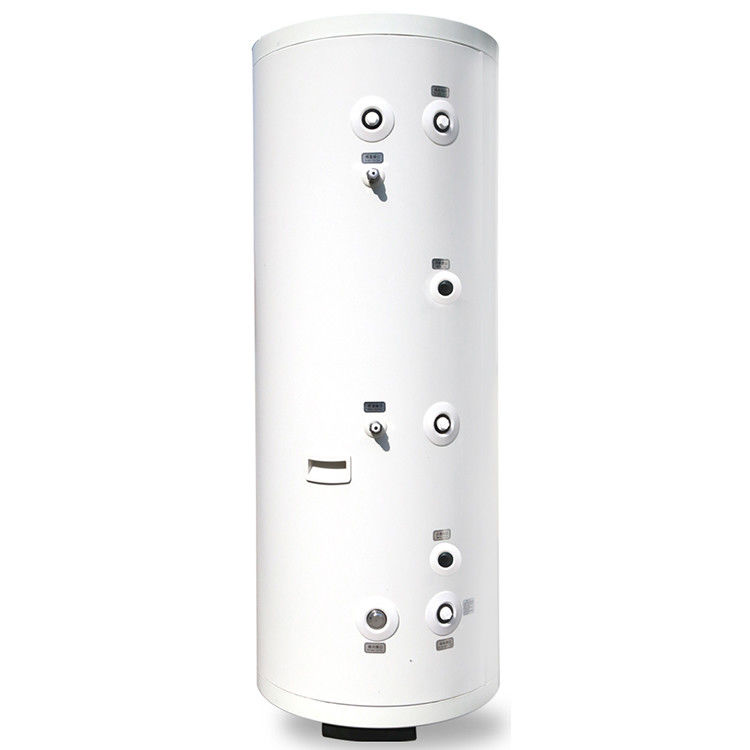

Longpu brand wall mounted boiler water tank is designed for heating and hot water supply. It has high quality enamel steel plate inner tank and 42mm insulation material. The diameter of water tank is 500mm, and the capacity is 100L, 150L, and 200L.
The wall mounted boiler water tank is ideal for use in residential and commercial buildings. It is easy to install and maintain. With its high quality material, it is able to provide hot water for a long time without any problems.
Longpu wall mounted boiler water tanks are widely used in many places such as hotels, schools, hospitals, shopping malls, and so on.
The wall mounted boiler water tank is highly reliable and efficient. It is energy-saving and cost-effective. With its long-lasting performance, it is able to provide hot water for a long time and save energy.
Longpu wall mounted boiler water tanks are reliable and durable. They are designed to provide hot water for a long time without any problems. The wall mounted boiler water tanks are also easy to install and maintain, so you don't need to worry about any trouble.
Quick details:
| Technical parameter for wall mounted furnace heat exchange enamel water tank | |||

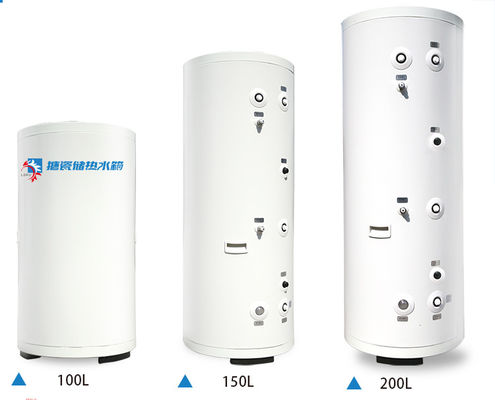

| Capacity | 100L | 150L | 200L |
| Dimension of water tank(mm) | Φ500*957 | Φ500*1327 | Φ500*1677 |
Gross/Net | 38/34Kg | 50/45Kg | 60/55Kg |
| Heat exchange method | Copper coil heat exchange | ||
| Plate material and thickness of inner tank(mm) | Material: enameling steel plate ,Grade:BTC210R Thickness:2.0mm Process:The inner surface is first sandblasted and then enameled. | ||
| Material and thickness of out shell(mm) | Out shell Material:PCM colored steel plate, Out shell thickness: 0.4mm Out shell color:Gray white color, Printing on out shell: can be customized | ||
| Size of inlet and outlet and pipe mouth | The size of the inlet and outlet is 4 internal threads, the size of the return outlet is 4 internal threads, the size of the T/P valve interface is 4 internal threads, the size of the medium outlet is 4 external threads, and the size of the discharge outlet is 6 internal threads. | ||
| Temperature sensing mouth:2pcs | Heating tube :optional | Polyurethane insulation layer thickness(mm)42mm | Rated working pressure: inner tank:0.70MPA |
The hot water system of the wall mounted farnace water tank meets the hot water needs of households' kitchens and
showers. It can be installed in the kitchen or bathroom and can store a large amount of hot water at once, ready to use. It
can also be used at multiple points simultaneously to avoid frequent start-up of wall mounted boilers, extend their service
life, and save gas costs.
The wall mounted furnace dual purpose system can meet both household hot water and heating needs. When the wall
mounted furnace operates efficiently, it is equipped with a Longpu enamel heat exchange water tank, which has sufficient
hot water volume and does not affect the operating conditions of underfloor heating. The pressure bearing design of the
water tank makes bathing more comfortable and safe to use.
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
Q1. What is the capacity of Wall Mounted Boiler Water Tank?
A1. 100L,150L,200L
Q2. What is the material of Wall Mounted Boiler Water Tank?
A2. The material of inner water tank is enamel steel plate.
Q3. What is the use of Wall Mounted Boiler Water Tank?
A2. It's used for heating and hot water supply.
Q3: Are you a manufacturer or trading company??
A3: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven
