Product Details:
|
| Diameter Of Water Tank: | Φ500mm | Structure: | With Small Tank Heat Exchanger |
|---|---|---|---|
| Capacity: | 80L,100L,120L | Application: | Hot Water Supply By Solar |
| Installation: | Vertical/horizontal | Material Of Inner Tank: | Special Enameling Steel Plate |
| Insulation: | Polyurethane | Material Of Outer Shell: | PCM Color Coated Steel Plate |
| System: | Pressurized | ||
| Highlight: | 80ltr Enamel Water Tank,60ltr Enamel Water Tank,60ltr Solar Water Heater Tank |
||
Heat transfer process of corrugated small inner tank:
Corrugated small inner tank is an upgraded product based on the first generation of smooth small inner tank. Through technical research and development in the past two years and numerous experiments and data correction, we have gradually overcome various difficulties in mechanical technology and enamel technology, and successfully produced Corrugated small inner tank in batches.. The heat transfer structure greatly improves the heat transfer area and the heat collection efficiency of the whole system. Flange and the small inner tank are integral structure, So the heat exchanger can be replaced as a whole.
small inner tank heat exchanger refers to the small tank heat exchanger designed inside the inner enamel tank of heat storage water tank . This small tank is used for heat exchange. Because it is a small tank inside the inner enamel liner, so it is called tank-in-tank heat exchange.
Material of the small inner tank: Enamelled
Structural style: corrugated tank
Features:
1.Strong pressure resistance
2. Large heat exchange area
Application:Used for Solar balcony wall mounted system and Centralized heat collection and household heat storage system
| Technical parameter of heat storage solar water tank With corrugated small tank heat exchanger (Vertical/Horizontal) | |||
| Item | 80L | 100L | 120L |
| Size of inner tank(mm) | φ414*750mm | φ414*900mm | φ414*1030mm |
| Overall dimension of solar water tank(mm) | φ500*900mm | φ500*1040mm | φ500*1150mm |
| Material and area of heat exchanger | SPCC,T=1.5mm,Heat exchange area :0.28m2 | ||
| Technical parameter of heat storage solar water tank With sink small tank heat exchanger (Horizontal) | |||
| Item | 80L | 100L | 120L |
| Size of inner tank(mm) | φ414*770mm | φ414*920mm | φ414*1050mm |
| Overall dimension of solar water tank(mm) | φ500*940mm | φ500*1090mm | φ500*1150mm |
| Gross weight/Net weight of water tank(Kg) | 38/35Kg | 42/39Kg | 47/43Kg |
| Material and area of heat exchanger | SPCC,T=1.5mm,Heat exchange area :0.28m2 | ||
| Plate material and thickness of inner tank(mm) | Material: enameling steel plate Thickness:2.0mm Process:The inner surface is first sandblasted and then enameled. | ||
| Material and thickness of out shell(mm) | Out shell Material:PCM colored steel plate, Out shell thickness: 0.4mm Out shell color:Gray white color, Printing on out shell: can be customized | ||

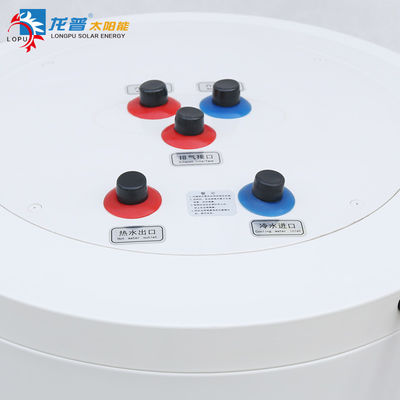

| Size of inlet and outlet pipes and medium pipes | G1/2" | ||
| Thickness of enamel | 0.15-0.5mm | ||
| Thickness of Polyurethane Thermal Insulation Layer(mm) | 42.5mm | ||

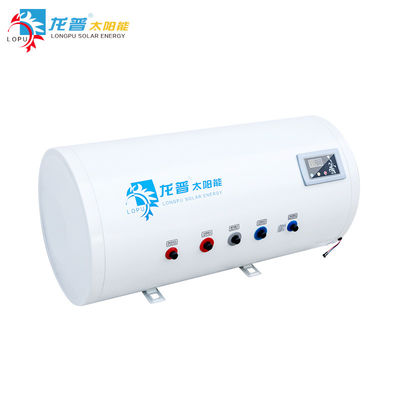

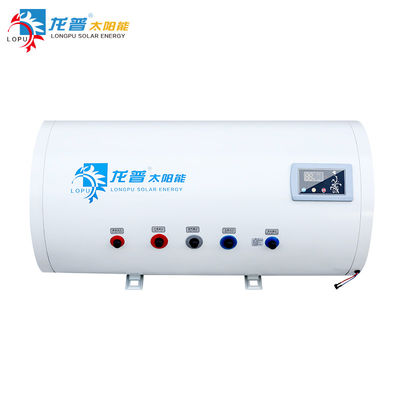

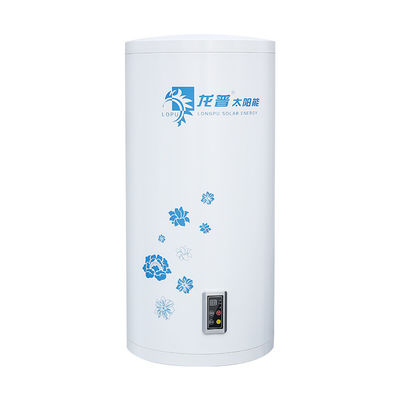

| Intallation | Vertical or Horizontal | ||
| Auxiliary heating power(KW) | 2.0KW/1.5KW optional | ||
| Controller | Push-to-talk controller/Intelligent controller/Mechanical controller/Wire controlled controller. | ||
| Main functions of the controller | Temperature display, constant temperature, timing, temperature difference control (forced circulation), instant heating, maintaining constant temperature, leakage protection, high temperature alarm, and other functions. (The specific functions of different controllers may vary) | ||
| Power supply cord | 1.0m2 or 1.5 m2 ordinary power cords or leakage protection power cords | ||
| Structure of heat exchange | small tank heat exchanger | ||
| Rated working pressure of inside tank of water tank | 0.7MPa for inner tank,0.2MPa for small tank heat exchanger | ||
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
Established in 2008,Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven. With Shandong Haovat New Energy Co., Ltd., as a wholly-owned subsidiary, it covers an total area of 65,000 square meters with a total capacity of 600,000 sets per year.
Our main products includes heat storage enamel solar water tanks ,air source heat pump household enamel water tank, air source heating buffer water tank,balcony solar water heater,split solar water heater, integrated solar water heater,tankless solar water heater,flat plate solar collector,solar vacuum tube and solar cooker.
Q1: Are you a manufacturer or trading company??
A: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven
Q2: What's the capacity of Enamel Solar Water Tank ?
A: 60L,80L,100L,120L.
Q3: What is the material of your Enamel Solar Water Tank?
A: The Material of inner tank is enamel steel plate,the material of outer shell is PCM colored steel plate.
Q4:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
