Product Details:
|
| Insulation: | Polyurethane | Diameter Of Water Tank: | Φ470mm,Φ500mm |
|---|---|---|---|
| Material Of Inner Tank: | Special Enameling Steel Plate | Capacity: | 60L,80L,100L,120L |
| Structure: | With Jacket Heat Exchanger | System: | Pressurized |
| Model: | 470series,500series | Material Of Outer Shell: | PCM Color Coated Steel Plate |
| Highlight: | 120 Liter Enamel Water Tank,Enamel Water Tank 470mm Diameter,120 L solar power tank |
||

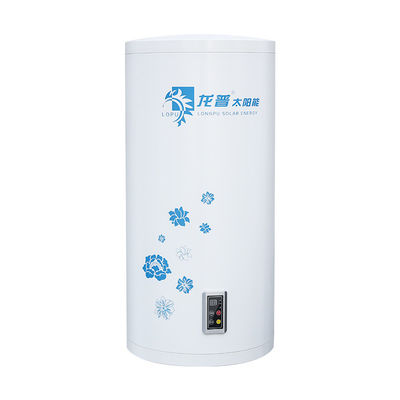

The Enamel Water Tank has a Jacket Heat Exchanger structure and is made from PCM Color Coated Steel Plate for the outer shell and Special Enameling Steel Plate for the inner tank. It is suitable for Solar Water Heater systems and is available in two models, 470series and 500series. This product provides high thermal efficiency and is designed to resist corrosion and leakage. The water tank's interior is coated with special enamel material to ensure the highest quality and safety standards. The exterior has a PCM Color Coated Steel Plate that is easy to clean and maintain. The Enamel Water Tank is a reliable and cost-effective solution for residential or commercial water heating needs. It is designed to withstand extreme weather conditions and is perfect for a wide range of residential and commercial applications.
Jacket heat transfer proces:
Jacket heat transfer: Firstly, a metal sandwich barrel sleeve is welded on the outer wall of the inner tank. Then, the upper circulating pipe, the lower circulating pipe, the upper exhaust port and the injection port are welded on the outer wall of the sandwich barrel sleeve. When in use, the jacket and the collector are filled with heat conducting fluid. When collecting heat, the heat conducting fluid circulates to the jacket layer and is transmitted to the water tank through carbon steel plate and heats the water.
1. Double jacketed heat exchange water tank, water and medium are separated.
2. The system adopts natural circulation with few fault points.
3. Maintenance free: medium circulation, not easy to scale, convenient and practical
4. Electric auxiliary heating, 24-hour stable hot water supply
5. Pressurized heat storage solar water tank
| Technical parameter of Enamel solar water tank with Jacket heat exchanger | ||||||
| Model | Capacity of Water Tank (L) | Dimension of water tank (mm) |
Dimension of inner tank (mm) |
Gross weight/ Net weight of water tank |
Material and thickness of heat exchanger |
Wall-hanging Style |
| 470 series | 60 | Φ470*785 | Φ370*655 | 35/32 | SPCC,T=1.5mm | Vertical |
| 470 series | 80 | Φ470*955 | Φ370*825 | 39/36 | SPCC,T=1.5mm | Vertical/Horizontal |
| 470 series | 100 | Φ470*1125 | Φ370*995 | 47/44 | SPCC,T=1.5mm | Vertical/Horizontal |
| 500 series | 80 | Φ500*900 | Φ395*770 | 40/36 | SPCC,T=1.5mm | Vertical |
| 500 series | 100 | Φ500*1040 | Φ395*910 | 45/41 | SPCC,T=1.5mm | Vertical |
| 500 series | 120 | Φ500*1200 | Φ395*1070 | 48/44 | SPCC,T=1.5mm | Vertical |
| Plate material and thickness of inner tank(mm) | Material: enameling steel plate Thickness:2.0mm Process:The inner surface is first sandblasted and then enameled. |
| Material and thickness of out shell(mm) |
PCM colored steel plate,thickness: 0.4mm,Gray white color, Printing on out shell can be customized |
| Size of inlet and outlet pipes and medium pipes | G1/2" |
| Thickness of enamel | 0.15-0.5mm |
| Thickness of Polyurethane Thermal Insulation Layer(mm) | 50mm for inner tank,40mm for the jacket part |
| Intallation | Vertical or Horizontal |
| Auxiliary heating power(KW) | 2.0KW/1.5KW optional |
| Controller | Push-to-talk controller/Intelligent controller/Wire controlled controller. |
| Main functions of the controller | Temperature display, constant temperature, timing, temperature difference control (forced circulation), instant heating, maintaining constant temperature, leakage protection, high temperature alarm, and other functions. (The specific functions of different controllers may vary) |
| Power supply cord | 1.0m2 or 1.5 m2 ordinary power cords or leakage protection power cords |
| Structure of heat exchange | Jacket heat exchanger,Single injection port |
| Rated working pressure of inside tank of water tank | 0.7MPa for inner tank,0.2MPa for jacket layer |
The Enamel Water Tank from longpu is the perfect choice for a variety of applications. Made in China, these tanks come in a wide range of sizes, including 60L, 80L, 100L, and 120L, and with a diameter of Φ470mm and Φ500mm. The tank is insulated with polyurethane for maximum temperature control, and can be installed vertically or horizontally. A jacket heat exchanger ensures that the tank functions optimally.
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
Established in 2008,Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven. With Shandong Haovat New Energy Co., Ltd., as a wholly-owned subsidiary, it covers an total area of 65,000 square meters with a total capacity of 600,000 sets per year.
Our main products includes heat storage enamel solar water tanks ,air source heat pump household enamel water tank, air source heating buffer water tank,balcony solar water heater,split solar water heater, integrated solar water heater,tankless solar water heater,flat plate solar collector,solar vacuum tube and solar cooker.
Q1: Are you a manufacturer or trading company??
A: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven
Q2: What's the capacity of Enamel Solar Water Tank ?
A: 60L,80L,100L,120L.
Q3: What is the material of your Enamel Solar Water Tank?
A: The Material of inner tank is enamel steel plate,the material of outer shell is PCM colored steel plate.
Q4:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
