Product Details:
|
| Capacity: | 65L,80L,100L,120L | Structure: | Copper Coil Heat Exchanger |
|---|---|---|---|
| Diameter Of Water Tank: | Φ500mm | Material Of Inner Tank: | Special Enameling Steel Plate |
| Material Of Outer Shell: | PCM Color Coated Steel Plate | Installation: | Vertical/horizontal |
| System: | Pressurized | ||
| Highlight: | 500mm Dia Enamel Water Tank,470mm Dia Enamel Water Tank,470mm solar powered water tank |
||
Coil heat transfer process:
The heat exchange water tank can be used in centralized heat collection and household heat storage system and balcony wall hanging forced circulation system.
Function: the medium exchanges heat to domestic water through the coil of water tank and stores it in the water tank.
Features:
1.large heat exchange area；
2.sufficient heat exchange
3.Coil with strong pressure resistance
4.It is suitable for forced circulation split system and can meet the application requirements of many systems.
Application: Used for centralized heat collection and household heat storage system, solar heating system, multi-energy complementary system.
| Technical parameter of enamel solar water tank with copper coil heat exchanger |
||||
| Capacity of water tank | 65L | 80L | 100L | 120L |
| Dimension of inner tank(mm) | φ414*590mm | φ414*710mm | φ414*860mm | φ414*1030mm |
| Overall dimension of solar water tank(mm) | φ500*720mm | φ500*840mm | φ500*990mm | φ500*1160mm |
| Gross weight/Net weight of water tank(Kg) | 30/27Kg | 34/30Kg | 39/35Kg | 44/40Kg |

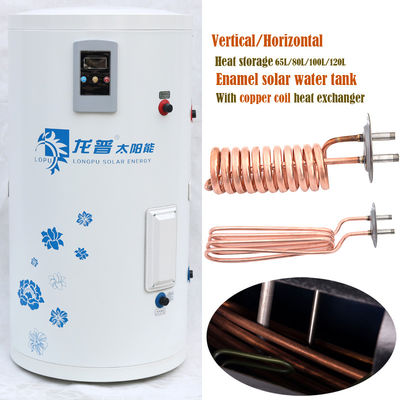

| Material and area of heat exchanger | φ16*1mm copper coil,Length 3.6M,heat exchange area 0.18m2 | φ16*1mmcopper coil,Length4.4m,heat exchange area 0.22m2 | φ16*1mmcopper coil,Length4.4m,heat exchange area 0.22m2 | φ16*1mmcopper coil,Length 5.6m,heat exchange area 0.28m2 |
| Plate material and thickness of inner tank(mm) | Material: enameling steel plate ,Grade:BTC210R Thickness:2.0mm Process:The inner surface is first sandblasted and then enameled. |
|||
| Material and thickness of out shell(mm) | Out shell Material:PCM colored steel plate, Out shell thickness: 0.4mm Out shell color:Gray white color, Printing on out shell: can be customized |
|||
| Thickness of enamel | 0.15-0.5mm | |||
| Thickness of Polyurethane Thermal Insulation Layer(mm) | 42.5mm； | |||

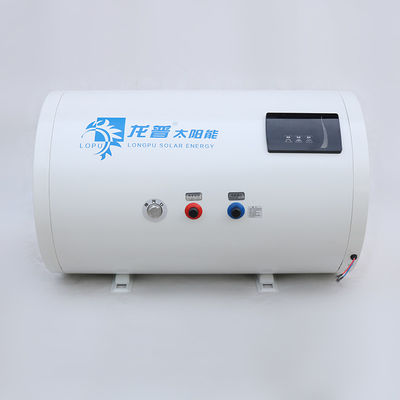

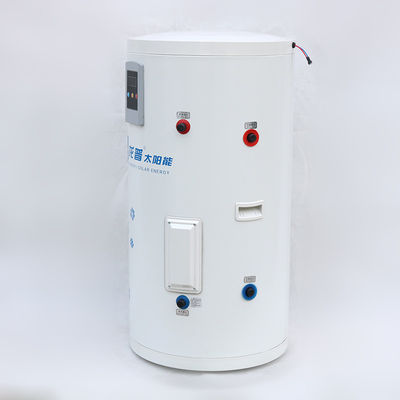

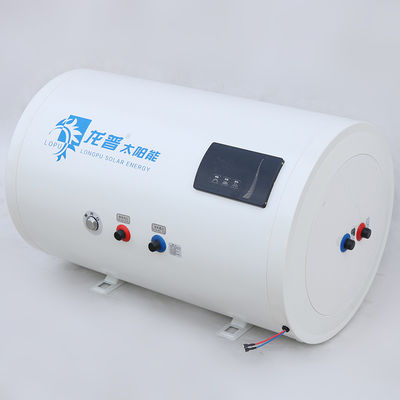

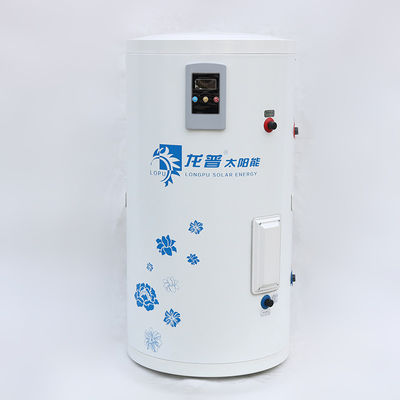

| Intallation | Vertical or Horizontal | |||
| Auxiliary heating power(KW) | 2.0KW/1.5KW optional | |||
| Controller | Push-to-talk controller/Intelligent controller/Mechanical controller/Wire controlled controller. | |||
| Main functions of the controller | Temperature display, constant temperature, timing, temperature difference control (forced circulation), instant heating, maintaining constant temperature, leakage protection, high temperature alarm, and other functions. (The specific functions of different controllers may vary) | |||
| Power supply cord | 1.0m2 or 1.5 m2 ordinary power cords or leakage protection power cords | |||
| Structure of heat exchange | coil heat exchanger,Side outlet | |||
| Rated working pressure of inside tank of water tank | inner tank:0.7MPa | |||
OEM and ODM orders are warmly welcomed.We have rich ODM OEM experience.
We can customize product as your requests.Please don't hesitate to contact us if you have any demands.
Established in 2008,Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven. With Shandong Haovat New Energy Co., Ltd., as a wholly-owned subsidiary, it covers an total area of 65,000 square meters with a total capacity of 600,000 sets per year.
Our main products includes heat storage enamel solar water tanks ,air source heat pump household enamel water tank, air source heating buffer water tank,balcony solar water heater,split solar water heater, integrated solar water heater,tankless solar water heater,flat plate solar collector,solar vacuum tube and solar cooker.
Q1: Are you a manufacturer or trading company??
A: Shandong Longpu Solar Energy Co., Ltd. (Stock Code: 870395) ,established in 2008,is a high-tech enterprise specializing in the research, design and manufacture of enamel hot water storage tanks, solar water heaters, solar collectors,solar vacuum tube and solar cooker oven
Q2: What's the capacity of Enamel Solar Water Tank ?
A: 60L,80L,100L,120L.
Q3: What is the material of your Enamel Solar Water Tank?
A: The Material of inner tank is enamel steel plate,the material of outer shell is PCM colored steel plate.
Q4:Can you supply OEM &ODM service ?
A:Yes, but there is a minimum order quantity required.
